Click Here For Performance / Dimensions
Specifications:
Notes:
(NEMA MG-1, Table 12-12)   2) Inverter Duty (20:1 Variable Torque; 10:1 Constant Torque)   8) Inveter Rated (10:1 Variable Torque; 5:1 Constant Torque)   7) Equipped with Terminal Blocks as Standard   9) C and D-Flange Conversion Kits Availiable 1) NEMA Premium     5) Ball Bearing on Drive End   4) 12 Lead Part Wind Start at 460V   3) 12 Lead Part Wind start at 230V   6) Insulated Bearing on Opposite Drive End
TERMS
DISCLAIMER
ABOUT
Return

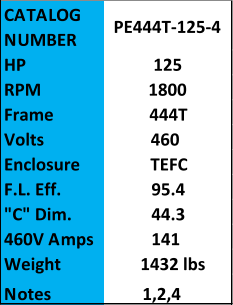

CATALOG  NUMBER PE444T-125-4 HP 125 RPM 1800 Frame 444T Volts         460 Enclosure TEFC F.L. Eff. 95.4 "C" Dim. 44.3 460V Amps 141 Weight 1432 lbs Notes 1,2,4
Test Ring Me
Control / Protection
Your Price
CALL
Specifications:
Notes:
(NEMA MG-1, Table 12-12)   2) Inverter Duty (20:1 Variable Torque; 10:1 Constant Torque)   8) Inveter Rated (10:1 Variable Torque; 5:1 Constant Torque)   7) Equipped with Terminal Blocks as Standard   9) C and D-Flange Conversion Kits Availiable 1) NEMA Premium     5) Ball Bearing on Drive End   4) 12 Lead Part Wind Start at 460V   3) 12 Lead Part Wind start at 230V   6) Insulated Bearing on Opposite Drive End
Return
CATALOG  NUMBER PE444T-125-4 HP 125 RPM 1800 Frame 444T Volts         460 Enclosure TEFC F.L. Eff. 95.4 "C" Dim. 44.3 460V Amps 141 Weight 1432 lbs Notes 1,2,4
