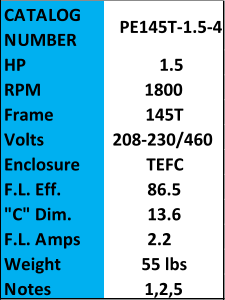

CATALOG NUMBER PE145T-1.5-4 HP 1.5 RPM 1800 Frame 145T Volts 208-230/460 Enclosure TEFC F.L. Eff. 86.5 "C" Dim. 13.6 F.L. Amps 2.2 Weight 55 lbs Notes 1,2,5 (NEMA MG-1, Table 12-12) 2) Inverter Duty (20:1 Variable Torque; 10:1 Constant Torque) 8) Inveter Rated (10:1 Variable Torque; 5:1 Constant Torque) 7) Equipped with Terminal Blocks as Standard 9) C and D-Flange Conversion Kits Availiable 1) NEMA Premium 5) Ball Bearing on Drive End 4) 12 Lead Part Wind Start at 460V 3) 12 Lead Part Wind start at 230V 6) Insulated Bearing on Opposite Drive End
TERMS
DISCLAIMER
ABOUT
Return
Control / Protection
Test Ring Me
Specifications:
Notes:
Click Here For Performance / Dimensions
Your Price
Specifications:
Notes:
CATALOG NUMBER PE145T-1.5-4 HP 1.5 RPM 1800 Frame 145T Volts 208-230/460 Enclosure TEFC F.L. Eff. 86.5 "C" Dim. 13.6 F.L. Amps 2.2 Weight 55 lbs Notes 1,2,5 (NEMA MG-1, Table 12-12) 2) Inverter Duty (20:1 Variable Torque; 10:1 Constant Torque) 8) Inveter Rated (10:1 Variable Torque; 5:1 Constant Torque) 7) Equipped with Terminal Blocks as Standard 9) C and D-Flange Conversion Kits Availiable 1) NEMA Premium 5) Ball Bearing on Drive End 4) 12 Lead Part Wind Start at 460V 3) 12 Lead Part Wind start at 230V 6) Insulated Bearing on Opposite Drive End
